Inspector
Verifies the performance of ultra-precision components.
-

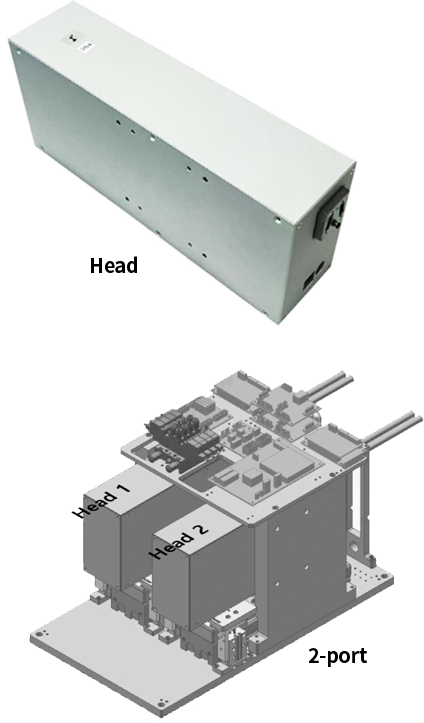

6 Axis Measurement System
Overview
- High-speed (1000Hz), high-precision (<1um, <1min) 6DOF motion measurement system
- STEREO VISION method
- Utilization of FIDUCIAL MARKS (dedicated FIDUCIAL MARKS; CUSTOMIZED MARKS available)
Applications
Performance testing of Camera Module OIS / AF Actuator
- Simultaneous measurement of X, Y, Z displacement and Yaw, Pitch, Roll during OIS and AF operation
- Settling Time measurement available for each motion ( Time Resolution 1msec )
Performance measurement and calibration of multi-axis / multi-joint robots
- Calibration of the target system through simultaneous measurement of Stage X, Y, Z displacement and Yaw, Pitch, Roll

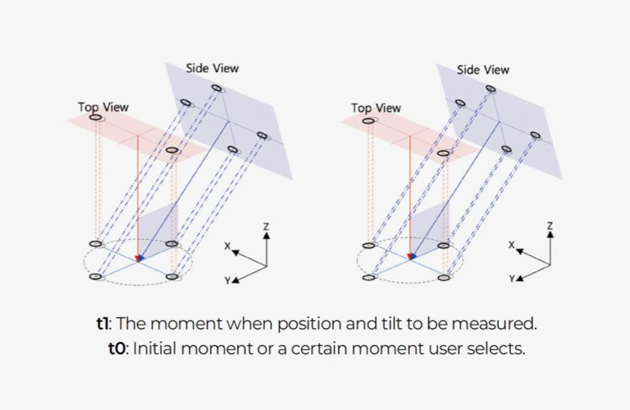

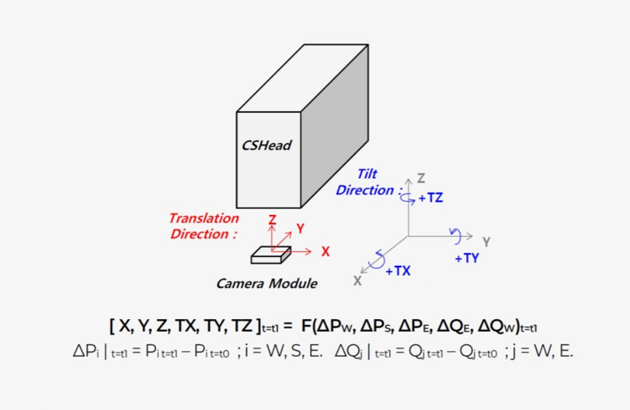

Measurement Principle of the 6 Axis Measurement System
-

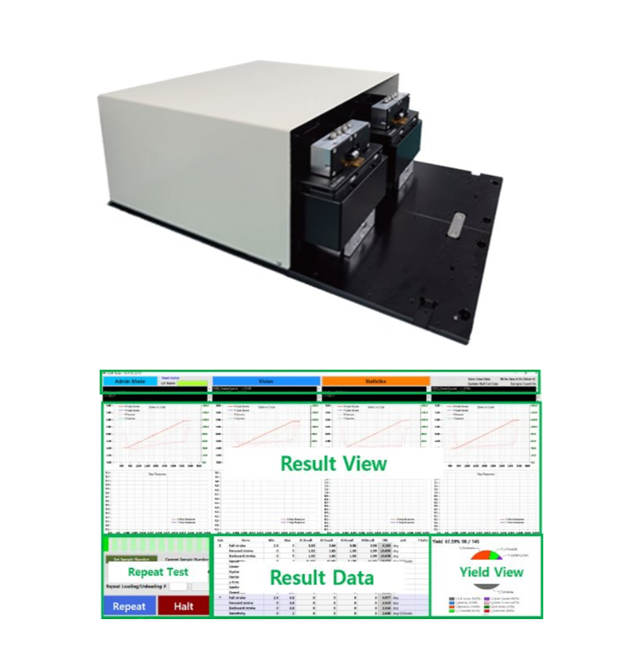

OIS Tester
Overview
- Faster measurement with higher resolution compared to existing products
- Customizable features available
- Replay capability for all inspection processes
- 4 ports per set: minimizing investment cost and space
-

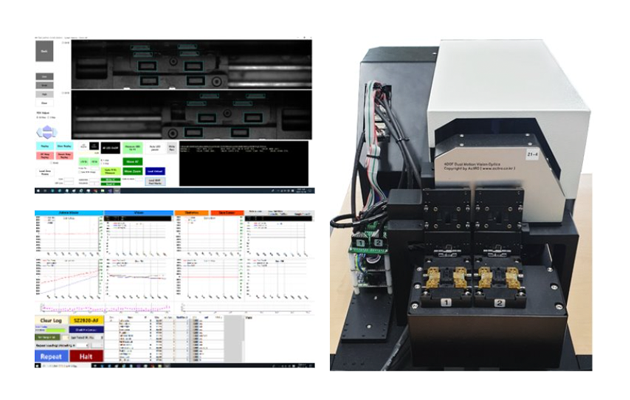

AF Tester
Overview
- Measurement of lens drive performance for 2-3 group Continuous Zoom lenses
- Faster measurement with higher resolution
- Customizable features available
- Replay capability for all inspection processes
- 2 ports per set: minimizing investment cost and space
